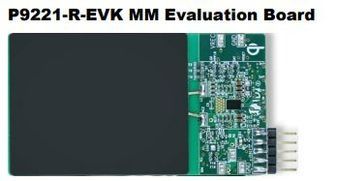

Wireless Power Receiver for 15W Applications

The P9221-R is a high-efficiency, Qi-compliant wireless power receiver targeted for applications up to 15W. Using magnetic inductive charging technology, the receiver converts an AC power signal from a resonant tank to a programmable regulated 9V or 12V DC output voltage. The integrated, low RDSON synchronous rectifier and ultra-low dropout linear (LDO) regulator offer high efficiency, making the product ideally suited for battery-operated applications.The P9221-R includes an industry-leading 32 bit ARM Cortex-M0 microprocessor offering a high level of programmability. In addition, the P9221-R features a programmable current limit and a patented over-voltage protection scheme eliminating the need for additional capacitors generally used by receivers and minimizing the external component count and cost. Together with IDT’s P9242-R transmitter (Tx), the P9221-R is a complete wireless power system solution for power applications up to 15W.The P9221-R is available in a 52-WLCSP package, and it is rated for a 0 to 85°C ambient operating temperature range.

• Single-chip solution supporting up to 15W applications
• WPC-1.2.3 compliant
• Patented over-voltage protection clamp eliminating external capacitors
• 87% peak DC-to-DC efficiency with P9242-R Tx
• Full synchronous rectifier with low RDSON switches
• Programmable output voltage: 9V or 12V
• User-programmable foreign-object detection (FOD)
• Dedicated remote temperature sensing
• Power transfer LED indicator
• Programmable current limit
• Active-low enable pin for electrical on/off
• Open-drain interrupt flag
• Supports I2C interface
• 0 to +85°C ambient operating temperature range
• 52-WLCSP (2.64 x 3.94 mm; 0.4mm pitch)
