Voltage Mode PWM Controller 0.8V 1A 14-Pin SOIC N

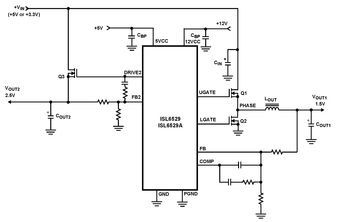

Dual Regulator–Synchronous Rectified Buck PWM and Linear Power Controllers Provides two regulated voltages - One synchronous rectified buck PWM controller - One linear controller • Both controllers drive low cost N-Channel MOSFETs • 12V direct drive saves external components • Small converter size - 600kHz constant frequency operation - Small external component count • Excellent output voltage regulation - Both outputs: ±1% over temperature - ISL6529AC - Both outputs: ±2% over temperature - ISL6529C • 5V down conversion • PWM and linear output voltage range: down to 0.8V • Simple single-loop voltage-mode PWM control design • Fast PWM converter transient response - High-bandwidth error amplifier - Full 0-100% duty ratio • Linear controller drives N-Channel MOSFET pass transistor • Fully-adjustable outputs • Undervoltage fault monitoring on both outputs • QFN Package: - Compliant to JEDEC PUB95 MO-220 QFN - Quad Flat No Leads - Package Outline - Near Chip Scale Package footprint, which improves PCB efficiency and has a thinner profile • Pb-Free Available (RoHS Compliant)
