Volt Supervisor Detect 8-Pin PDIP

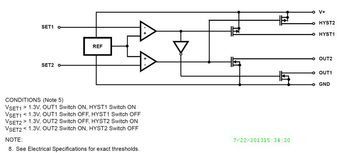

The ICL7665S super CMOS micropower Over/Under voltage detector contains two low power, individually programmable voltage detectors on a single CMOS chip. Requiring typically 3µA for operation, the device is intended for battery-operated systems and instruments which require high or low voltage warnings, settable trip points, or fault monitoring and correction. The trip points and hysteresis of the two voltage detectors are individually programmed via external resistors. An internal bandgap type reference provides an accurate threshold voltage while operating from any supply in the 1.6V to 16V range

• Guaranteed 10µA maximum quiescent current over-temperature
• Guaranteed wider operating voltage range over entire operating temperature range
• 2% threshold accuracy
• Dual comparator with precision internal reference
• 100ppm/°C temperature coefficient of threshold voltage
• 100% tested at 2V
• Output current sinking ability Up to 20mA
• Individually programmable upper and lower trip voltages and hysteresis levels
• Pb-Free available (RoHS Compliant)
