Video Equalizer 20-Pin QFN EP

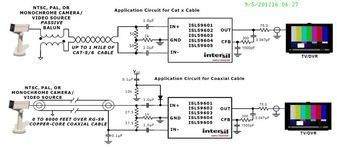

The ISL59605IRZ (the “MegaQ” product family) is single-channel adaptive equalizers designed to automatically compensate for long runs of Cat 5/6 or RG-59 cable, producing high quality video output with no user interaction. The ISL59605IRZ equalizes Cat 5/6 up to a distance of 1000 feet (300 meters), while the ISL59605IRZ equalizes up to 5300 feet (1600 meters). MegaQ compensates for high frequency cable losses of up to 60dB (ISL59605IRZ) at 5MHz as well as source amplitude variations up to ±3dB. The ISL59604 operate from a single +5V supply. Inputs are AC-coupled and internally DC-restored. The output can drive 2VP-P into two source-terminated 75? loads (AC-coupled or DC-coupled).

• ISL59605 Equalizes Up to 1 Mile (1600m) of Cat 5/6 and Upto 6000 Feet (1800m) of RG-59
• Fully Automatic, Stand-Alone Operation - No User Adjustment Required
• ±8kV ESD Protection on All Inputs
• Automatic Cable Type Compensation
• Compatible with Color or Monochrome, NTSC or PAL Signals
• Automatic Polarity Detection and Inversion
• Compensates for ±3dB Source Variation (in Addition to Cable Losses)
• Optional Serial Interface Adds Additional Functionality
• 5MHz -3dB Bandwidth
• Works with Single-Ended or Differential Inputs
• Output Drives Up to Two 150? Video Loads
