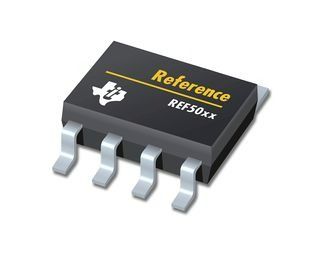

V-Ref Precision 5V 10mA 8-Pin SOIC T/R

The REF50xx is a family of low-noise, low-drift, very high precision voltage references. These references are capable of both sinking and sourcing, and are very robust with regard to line and load changes.Excellent temperature drift (3ppm/°C) and high accuracy (0.05%) are achieved using proprietary design techniques. These features, combined with very low noise, make the REF50xx family ideal for use in high-precision data acquisition systems.Each reference voltage is available in both standard- and high-grade versions. They are offered in MSOP-8 and SO-8 packages, and are specified from –40°C to +125°C.

LOW TEMPERATURE DRIFT:

• High-Grade: 3ppm/°C (max)
• Standard-Grade: 8ppm/°C (max)

HIGH ACCURACY:

• High-Grade: 0.05% (max)
• Standard-Grade: 0.1% (max)

LOW NOISE: 3µV_PP/V

EXCELLENT LONG-TERM STABILITY:

• 45ppm/1000hr (typ) after 1000 hours

HIGH OUTPUT CURRENT: ±10mA

TEMPERATURE RANGE: –40°C to +125°C
