USB Type-C Port Controller 12-Pin TMLP T/R

The FUSB301A is a fully autonomous Type-C controller optimized for <15 W applications. The FUSB301A offers CC logic detection for Source Mode, Sink Mode, DRP, accessory detection support, and dead battery support. The FUSB301A features configurable I2C address to support multiple ports per system. The FUSB301A features an extremely low power disable mode as well as low power during normal operation. It is available in an ultra thin, 12-Lead TMLP package.

• Fully Autonomous Type-C Controller Supports Type-C Version 1.1
• VDD Operating Range, 3.0 V- 5.5 V
• Low Disable Power: ICC = 2.0 µA (Max.)
• Low Standby Power: ICC = 7.0 µA (Max.)
• DRP Mode with Optional Accessory Support
• Configurable I2C Address
• Capable of Supporting Try.SNK and Try.SRC
• Dead Battery Support (UFP Support when No Power Applied)
• 2 kV HBM ESD Protection

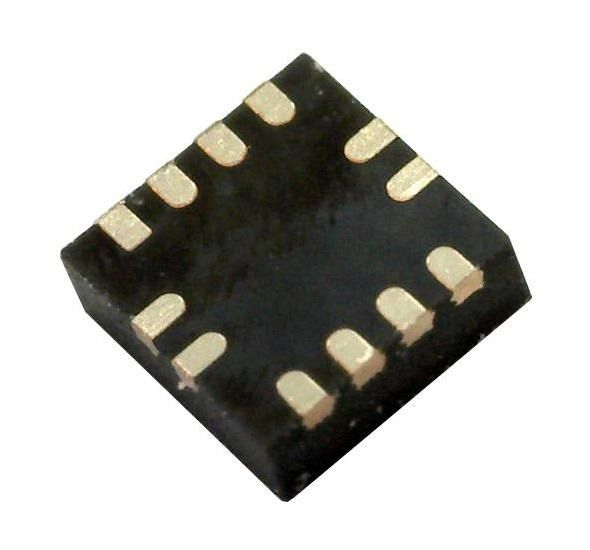

• Small Packaging, 12 Lead TMLP (1.6 mm x 1.6 mm x 0.375 mm)
