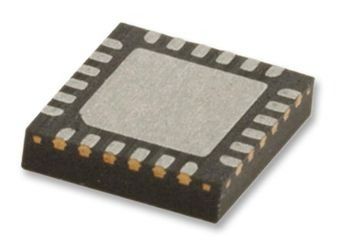

USB Type-C Interface 24-Pin QFN EP T/R

The STUSB1600 is a generic IC designed in 20 V technology, addressing USB Type-C™ port management both on host and/or device sides and is suited for a broad range of applications. It is fully compatible with the USB Type-C cable and connector specifications. The STUSB1600 is able to handle all functions from Type-C attach detection, plug orientation detection, host-to-device connection, VCONN support, VBUS configuration and so on. Additionally, the STUSB1600 provides support for dead-battery operation and is fully customizable (thanks to an integrated non-volatile memory). Power role: provider, consumer, dual role Configurable startup profiles VCONN support – Adjustable current limit (600 mA max) – OVP, OCP, UVP protections Direct interface to MCU through I²C + interrupt Integrated voltage monitoring Dead-battery support Dual power supply: VBUS or system VDD Nominal operating supply [4.6 V - 22 V] Temperature range: -40 °C up to 85 °C
