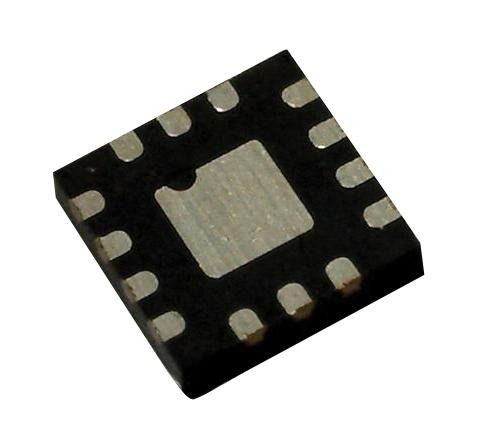

USB Programmable USB Type-C Controller USB3.1 5Gbps 14-Pin MLP T/R

The FUSB302B targets system designers looking to implement a DRP/SRC/SNK USB Type-C connector with low amount of programmability.The FUSB302B enables the USB Type-C detection including attach, and orientation. The FUSB302B integrates the physical layer of the USB BMC power delivery protocol to allow up to 100 W of power and role swap. The BMC PD block enables full support for alternative interfaces of the Type-C specification.

• Dual-Role Functionality with Autonomous DRP Toggle
• Ability to connect as either a host or a device based on what has been attached.
• Software configurable either as a dedicated host, dedicated device, or dual role.
  • Dedicated devices can operate both on a Type-C receptacle or a Type-C plug with a fixed CC and VCONN channel.
• Full Type-C 1.2 Support. Integrates the following functionality of the CC pin
  • Attach/Detach Detection as Host
  • Current Capability Indication as Host
  • Current Capability Detection as Device
• Audio Adapter Accessory Mode
• Integrates CCx to VCONN switch with over-current limiting for powering USB3.1 Full Featured cables.
• USB Power Delivery (PD) 2.0, Version 1.1 Support
• Dead Battery Support (SNK Mode Support when No Power Applied)
• Low Power Operation: ICC = 25 µA (Typical)
