USB Peripheral Controller 121-Pin BGA Tray
USB Peripheral Controller 121-Pin BGA Tray
- Best-in-class sideloading performance (>30 MBps) based on proprietary SLIM® II technology, enabling direct path from Hi-Speed USB 2.0 to mass storage devices
- USB-IF compliance certified
- USB 2.0 peripheral
- High-Speed On-The-Go (HS-OTG) 2.0 host negotiation protocol (HNP) and session request protocol (SRP)
- Thirty-two endpoints
- Integrated USB 2.0 transceivers
- EZ-Dtect™ – USB charger detection 1.1
- Accessory charger adaptor (ACA)
- Integrated Hi-Speed USB 2.0 switch
- Carkit Pass-Through UART functionality on USB
- Mass storage support
- SD 3.0 (SDXC) UHS-1
- eMMC 4.4
- System I/O expansion with two secure digital I/O (SDIO) ports
- Native mass storage class (MSC), human interface device (HID), full, and Turbo-MTPTM support
- Flexible host processor interface
- Asynchronous non-multiplexed SRAM
- Synchronous and asynchronous address/data multiplexed SRAM
- Multimedia card (MMC) slave with eMMC 4.3/4.4 pass-through boot
- Direct memory access (DMA) slave support over processor interfaces
- Ultra low-power in core power-down mode
- Less than 60 µA with VBATT on and 20 µA with VBATT off
- Independent and flexible power domains
- Flexible serial peripheral interfaces (SPIs)
- I ²C master controller at 1 MHz
- I ²S master (transmitter only) with sampling frequencies of 32 kHz, 44.1 kHz, and 48 kHz
- UART at 4 Mbps
- SPI master at 33 MHz
- Selectable clocking frequencies
- 19.2-, 26-, 38.4-, and 52-MHz clock input
- 19.2-MHz crystal input
- 32-kHz low-power clock for watchdog timer
- Package options:
- 5.099 mm × 4.695 mm × 0.55 mm, with 0.4 mm pitch small footprint wafer-level chip scale package (WLCSP)

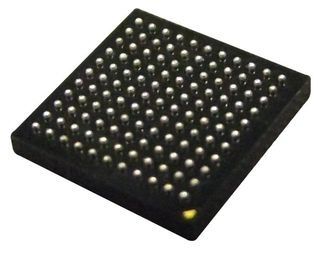

- 10 × 10 mm, 0.8-mm pitch ball grid array (BGA) package
- Pin compatible with West Bridge® Benicia™ enabling easy migration to USB 3.0
Характеристики
| Бренд | Rochester Electronics |
|---|---|
| Schedule B | 8542390000 |
| HTSN | 8542310001 |
| Страна происхождения | Thailand |
| Max Proce | 260 °C |
| Supplier | BGA |
| Screening Level | Industrial |
| Lead Finish | Tin|Silver|Copper |
| Msl Level | 3 |
| Type Prod | USB Peripheral Controller |
| Рабочая температура | -40 to 85 °C |
| Category | USB Peripheral Controller |
| Упаковка | Tray |
| Family | CYWB0164BB |
SKU: CYWB0164BB-BZXI
