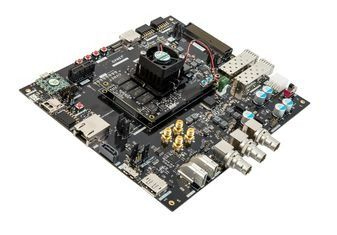

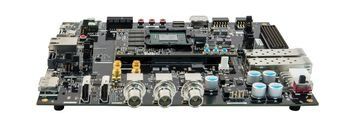

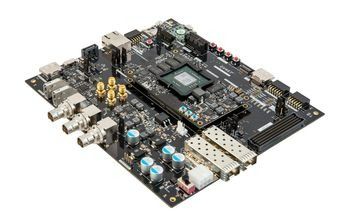

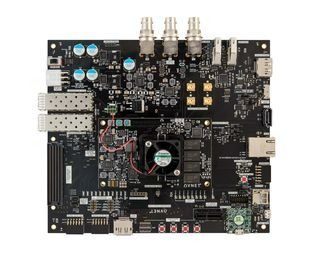

UltraZed-EV System-on-Module Starter Kit
The Zynq UltraScale+ MPSoC family is based on the Xilinx UltraScale MPSoC architecture. This family of products integrates a feature-rich 64-bit quad-core or dual-core ARM Cortex-A53 and dual-core ARM Cortex-R5 based processing system (PS) and Xilinx programmable logic (PL) UltraScale architecture in a single device. Also included are on-chip memory, multiport external memory interfaces, and a rich set of peripheral connectivity interfaces.
Характеристики
| Бренд | Avnet Engineering Services |
|---|---|
| Schedule B | 8471500150 |
| HTSN | 8471500150 |
| Страна происхождения | Китай |
| Interface | FMC HPC; PMOD; SYSMON |
| Gpio | Да |
| Pcie | Gen2 x1 |
| Usb | 1 USB3.0 OTG|1 USB Serial Bridge |
| Display Mode | HDMI, DisplayPort, 3G-SDI, Touch Panel |
| Ethernet | Да |
| Kit Includes | UltraZed-EV SOM|UltraZed-EV Carrier Card|12V AC/DC Power Supply|Quick Start Card|microUSB Cable|UltraZed-EV SOM Mounting Hardware|microSD Card 8GB|RJ45 Cable |
| Описание продукта | 7 x 8 in |
| Memory Type | DDR4 |
| Configura | 64MB QSPI and 8GB eMMC |
| Max Proce | 85 °C |
| Memory Ca | MicroSD |
| Memory Size | 5 Gbit |
SKU: AES-ZU7EV-1-SK-G
