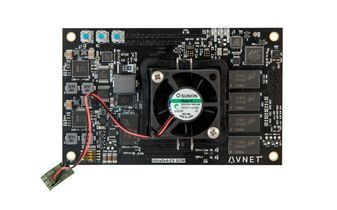

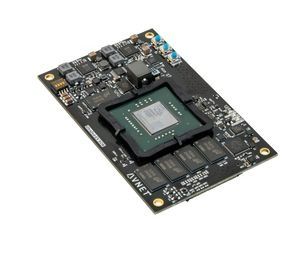

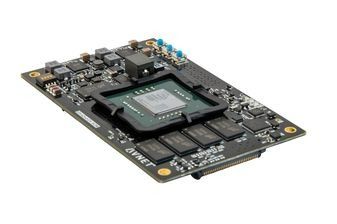

UltraZed-EV SOM

UltraZed-EV SOM is a high performance, full-featured, System-On-Module (SOM) based on the Xilinx Zynq UltraScale+ MPSoC EV family of devices. Designed in a small form factor, the UltraZed-EV SOM on-board dual system memory, high-speed transceivers, Ethernet, USB, and configuration memory provides an ideal platform for embedded video processing systems. The UltraZed-EV provides easy access to 152 user I/O pins, 26 PS MIO pins, 4 highspeed PS GTR transceivers along with 4 GTR reference clock inputs, and 16 PL high-speed GTH transceivers along with 8 GTH reference clock inputs through three I/O connectors on the backside of the module. These connectors provide USB 2.0, USB 3.0, PCIe Gen2, DisplayPort, SATA 3.0, FMC-HPC and more! The MPSoC EV device with its integrated H.264 / H.265 video codec unit is capable of simultaneous encode and decode up to 4Kx2K (60fps).

• Xilinx XCZU7EV-1FBVB900 device (SOM also supports 4EV, 5EV, 4EG, 5EG, or 7EG device in the FBVB900 package)
• PS DDR4 SDRAM (4GB, in x64 configuration)
• PL DDR4 SDRAM (1GB, in x16 configuration)
• Dual QSPI Flash (64MB)
• I2C EEPROM (2Kb)
• eMMC Flash (8GB, x8)
• USB 2.0 ULPI PHY
• Ethernet PHY
• PS reference clock input
• 3 JX connectors, providing
  • PS JTAG interface
  • PL SYSMON interface
  • Gigabit Ethernet RJ45 connector interface
  • PMBus interface
  • Power Good output, input voltages,and output sense pins
