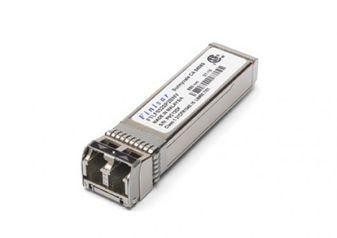

TX/RX Optical Fiber 8500Mbps

Finisar"s FTLF8528P3BxV SFP+ transceivers are designed for use in Fibre Channel links up to 8.5 Gb/s data rate over multimode fiber. They are compliant with FC-PI-4 Rev. 8.00 and SFF-8472 Rev 11.0, and compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 4.1. The product is RoHS compliant and lead-free per Directive 2002/95/EU and Finisar Application Note AN-2038.

• Up to 8.5 Gb/s bi-directional data links
• Hot-pluggable SFP+ footprint
• Built-in digital diagnostic functions
• 850nm Oxide VCSEL laser transmitter
• Duplex LC connector
• RoHS compliant and Lead Free
• 50m on 50/125µm MMF
• 150m on high-bandwidth
• 50/125um (OM3) MMF
• Metal enclosure, for lower EMI
• Single 3.3V power supply
• <0.5W power dissipation
• Extended operating temperature range: -5°C to 85°C
