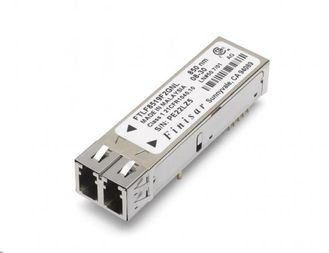

TX/RX Optical Fiber 2125Mbps
Finisar’s FTLF8519F2xNL Small Form Factor (SFF) transceivers comply with the 2x5standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA)1.They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std802.32 and Fibre Channel FC-PI-2 10.03. They are RoHS compliant and lead-free perDirective 2002/95/EC4 and Finisar Application Note AN-2038.
- Up to 2.125 Gb/s bi-directional data links
- Standard 2x5 pin SFF footprint (MSA compliant)
- 850nm Oxide VCSEL laser transmitter
- Duplex LC connector
- RoHS compliant and Lead Free
- Up to 500m on 50/125µm MMF, 300m on 62.5/125µm MMF
- Metal enclosure, for lower EMI
- Single 3.3V power supply
- Low power dissipation <750mW
- Extended operating temperature range: -10°C to 85°C
Характеристики
| Бренд | Finisar |
|---|---|
| Wavelength | 860 nm |
| Рабочая температура | -10 to 85 °C |
| Описание продукта | mm |
| Operating | 3 to 3.6 V |
| Type Prod | TX/RX |
| Schedule B | 8517620050 |
| HTSN | 8517620090 |
| Screening Level | Extended |
| Страна происхождения | Malaysia |
| Typical R | 0.15/0.17 ns |
| Max Proce | 260 |
SKU: FTLF8519F2GNL
