TX/RX Optical Fiber 2125Mbps

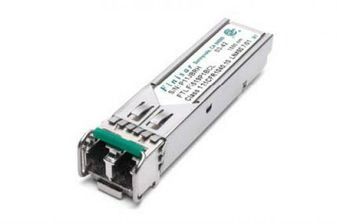

FTLF1519P1xCL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE Standard 802.3, and 1x and 2x Fibre Channel as defined in FC-PI 13.0. The optical transceivers are compliant per the RoHS Directive 2011/65/EU. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.

• Narrow Extraction Bail
• Up to 2.125Gb/s bi-directional data links
• Hot-pluggable SFP footprint
• Built-in digital diagnostic functions
• Uncooled 1550nm DFB laser transmitter
• Duplex LC connector
• RoHS compliant and Lead Free
• Metal enclosure, for lower EMI
• Single 3.3V power supply
• Up to 80 km on 9/125µm SMF
• Low power dissipation <700mW typical
• Extended operating temperature range: -10°C to 70°C
