TX/RX Optical Fiber 11.3Gbps

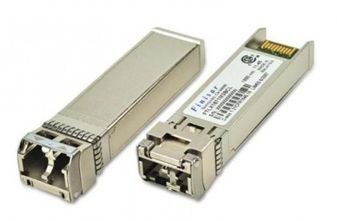

Finisar’s FTLX1871D3BNL transceivers are Enhanced Small Form Factor Pluggable SFP+ transceivers designed for use in 10-Gigabit multi-rate links up to 80km of G.652 single mode fiber. They are compliant with SFF-8431 , SFF-8432 and support 10G Ethernet ZR and 10G Fibre Channel.Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472 . Finisar’s FTLX1871D3BNL transceivers are RoHS compliant as per Directive 2011/65/EU and Finisar Application Note AN-2038.
- Hot-pluggable SFP+ footprint
- Supports 8.5 and 9.95 to 11.3 Gb/s
- 80km link length
- -5/85°C case temperature range
- Cooled 1550nm EML laser
- Limiting electrical interface receiver
- Duplex LC connector
- Built-in digital diagnostic functions
- RoHS-6 compliant (lead-free)
Характеристики
| Бренд | Finisar |
|---|---|
| Wavelength | 12 to 22 nm |
| Рабочая температура | -5 to 85 °C |
| Описание продукта | 56.5 x 14.7 x 8.55 |
| Operating | 3.3 V |
| Type Prod | TX/RX |
| Schedule B | 8517620050 |
| HTSN | 8517620090 |
| Страна происхождения | Malaysia |
| Typical R | 0.028 ns |
| Maximum F | 0.028 ns |
| Data Rate | 11.3(Max) Gbps |
SKU: FTLX1871D3BNL
