TX/RX Optical Fiber 11.3Gbps

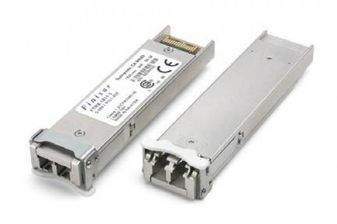

FTLX1812M3BCL Small Form Factor 10Gb/s (XFP) transceivers comply with the current XFP Multi-Source Agreement (MSA) Specification¹. They are a true multi-protocol transceiver complying with 80km SONET OC-192 and SDH STM-64 per ITU-T G.959.1: P1L1- 2D2, and also support 10GBASE-ZR/ZW 80km 10-Gigabit Ethernet, 10-Gigabit Fibre Channel 1200-SM-LL-L, and all related ITU-T G.709 FEC (OTN) data rates. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. The optical transceivers are compliant per the RoHS Directive 2011/65/EU.
- Supports 9.95Gb/s to 11.35Gb/s bit rates
- Hot-pluggable XFP footprint
- Maximum link length of 80km
- RoHS-6 compliant (lead-free)
- Temperature-stabilized EML transmitter
- Duplex LC connector
- Power dissipation <3.5W
- Built-in digital diagnostic functions
- XFI Loop-back Support
- Temperature range: 0°C to 70°C
Характеристики
| Бренд | Finisar |
|---|---|
| Wavelength | 1550 nm |
| Рабочая температура | 0 to 70 °C |
| Описание продукта | 22.15 x 77.95 x 13.3 |
| Operating | 3.13 to 3.46|4.75 to 5.25 V |
| Type Prod | TX/RX |
| Schedule B | 8517620050 |
| HTSN | 8517620090 |
| Screening Level | Commercial |
| Страна происхождения | Malaysia |
| Typical R | 0.04 ns |
| Maximum F | 0.04 ns |
| Data Rate | 11.3 Gbps |
SKU: FTLX1812M3BCL
