TX/RX Optical Fiber 11.3Gbps

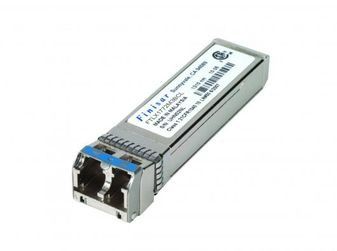

FTLX1772M3BCL 10Gb/s Pluggable SFP+ transceivers are compliant with SFF-8431 and SFF-8432, and support 10G SONET, SDH, OTN, IEEE 802.3ae, 8x/10x Fibre Channel and 6.144G/9.83 CPRI. FTLX1772M3BCL transceivers have higher optical transmit power and better receiver sensitivity than 1310nm 10GBASE-LR and OC-192 SR-1 transceivers, and they support an optical link budget of 17dB, to compensate for the higher fiber attenuation loss at 1310nm over 40km of G.652 single mode fiber. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The FTLX1772M3BCL transceivers utilize internal transmitter and receiver re-timer IC’s for SONET/SDH jitter compliance and to enhance host cards’ signal integrity. The FTLX1772M3BCL transceivers are Pb-free and RoHS-6.

• Hot-pluggable SFP+ footprint
• 17dB optical link budget for up to 40km(1) over G.652 single mode fiber
• Supports 6.144, 8.5G and from 9.83 to 11.3 Gb/s bit rates
• Un-cooled 1310nm DFB laser
• Receiver limiting electrical interface
• Power dissipation < 1.5W
• -5°C to 75°C temperature range
• RoHS-6 compliant (lead-free)
• Single 3.3V power supply
• Duplex LC connector
• Built-in digital diagnostic functions
