TX/RX Optical Fiber 11.3Gbps

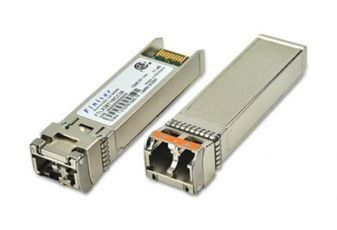

FTLX1672D3BCL transceivers are Enhanced Small Form Factor Pluggable SFP+ transceivers designed for use in 10-Gigabit multi-rate links up to 40km of G.652 single mode fiber. They are compliant with SFF-8431, SFF-8432 and 10GBASE-ER, and support 10G Fibre Channel over 40km links. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. FTLX1672D3BCL transceivers are RoHS compliant.
- Hot-pluggable SFP+ footprint
- Supports 8.5 and 9.95 to 11.3 Gb/s
- 40km link length
- -5/70ºC case temperature range
- Cooled 1550nm EML laser
- Limiting electrical interface receiver
- Duplex LC connector
- Built-in digital diagnostic functions
- RoHS-6 compliant (lead-free)
Характеристики
| Бренд | Finisar |
|---|---|
| Wavelength | 1550 nm |
| Рабочая температура | -5 to 70 °C |
| Описание продукта | 14.7 x 56.5 x 11.9 |
| Operating | 3.14 to 3.46 V |
| Type Prod | TX/RX |
| Schedule B | 8517620050 |
| HTSN | 8517620090 |
| Screening Level | Commercial |
| Страна происхождения | Malaysia |
| Typical R | 0.028(Min) ns |
| Data Rate | 11.3 Gbps |
SKU: FTLX1672D3BCL
