TX/RX Optical Fiber 10.5Gbps

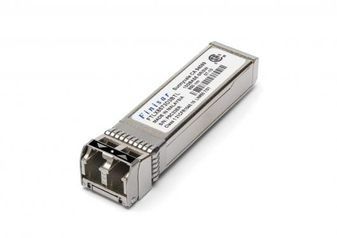

FTLX8573D3BTL Industrial Temperature 10Gb/s SFP+ transceivers are designed for use in 10-Gigabit Ethernet links over multimode fiber. They are compliant with SFF-8431¹, SFF-8432², IEEE 802.3ae 10GBASE-SR/SW³ and 10G Fibre Channel 1200-Mx-SN-I4. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-84725. The FTLX8573D3BTL is a “limiting module”, i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer"s recommended settings for interoperating the host-board EDC PHY with a limiting receiver SFP+ module. The transceiver is RoHS compliant and lead free per Directive 2002/95/EC6.

• Hot-pluggable SFP+ footprint
• Supports 9.95 to 10.5 Gb/s bit rates
• Power dissipation < 1W
• RoHS-6 compliant (lead-free)
• Industrial temperature range -40°C to 85°C
• Single 3.3Vpower supply
• Maximum link length of 400m on 4700 MHZ-km OM4 MMF
• Heated 850nm VCSEL laser
• Receiver limiting electrical interface
• Duplex LC connector
• Built-in digital diagnostic functions
