TX/RX Optical Fiber 10.5Gbps

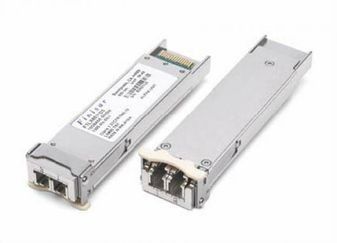

FTLX8512D3BCL Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification¹. They comply with 10-Gigabit Ethernet 10GBASE-SR/SW per IEEE 802.3ae, 10G Fibre Channel 1200-MxSN-I and 8G Fibre Channel 800-Mx-SN-I. This XFP transceiver can also support the IEEE OTN/FEC protocols OTU1e and OTU2e upon request. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. The transceiver is RoHS compliant and lead free per Directive 2002/95/EC³.

• Hot-pluggable XFP footprint
• Supports 8.5Gb/s and 9.95 through 10.5Gb/s* bit rates
• Power dissipation <1.5W
• RoHS-6 compliant (lead-free)
• Temperature range -5°C to 70°C
• Single power supply: 3.3V
• Maximum link length of 300m
• Uncooled 850nm VCSEL laser.
• Duplex LC connector
• No Reference Clock required
• Built-in digital diagnostic functions
• Standard bail release mechanism
