TX/RX Optical Fiber 10500Mbps

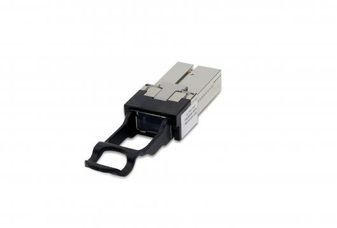

Finisar’s FTLD10CE1C CXP transceiver modules are designed for use in up to 100 Gigabit per second links over multimode fiber. They are compliant with the CXP Specification and IEEE 802.3ba 100GBASE-SR10 and CPPI interfaces. The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC , and Finisar Application Note AN-20384.

• 12-channel full-duplex transceiver module
• Hot Pluggable CXP form factor
• Maximum link length of 100m on
• OM3 Multimode Fiber (MMF)
• Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
• Unretimed CPPI electrical interface
• Requires 3.3V power supply only
• Low power dissipation: < 3.5W
• Reliable VCSEL array technology
• Built-in digital diagnostic functions
• Commercial operating case
• temperature range: 0°C to 70°C
• Single MPO connector receptacle
• RoHS-6 Compliant (lead-free)
