TX/RX Optical Fiber 103.1Gbps 56-Pin

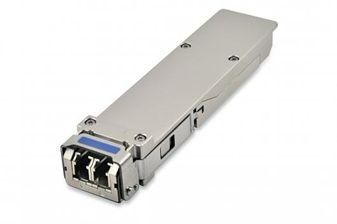

FTLC1141RDNL 100G CFP4 optical transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber. They are compliant with the CFP MSA, IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4. Digital diagnostics functions are available via the MDIO interface, as specified by the CFP MSA and Application Note AN-20xx. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.
- Hot-pluggable CFP4 form factor
- Supports 103.1Gb/s aggregate bit rate
- Power dissipation < 5W
- RoHS compliant
- Single 3.3V power supply
- Maximum link length of 10km on Single Mode Fiber (SMF)
- 4x25Gb/s DFB-based LAN-WDM transmitter
- 4x25G electrical interface
- Duplex LC receptacles
- MDIO management interface
- Commercial case temperature range: 0°C to 75°C
Характеристики
| Бренд | Finisar |
|---|---|
| Wavelength | 1310 nm |
| Рабочая температура | -5 to 75 °C |
| Описание продукта | 92 x 21.5 x 9.5 |
| Operating | 3.2 to 3.4 V |
| Type Prod | TX/RX |
| Schedule B | 8517620050 |
| HTSN | 8517620090 |
| Screening Level | Commercial |
| Страна происхождения | Malaysia |
| Data Rate | 103.1 Gbps |
SKU: FTLC1141RDNL
