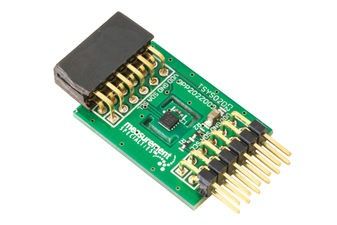

TSYS02D Digital Temperature Sensor Peripheral Module

The TSYS02D is a single chip, temperature sensor. It provides factory calibrated data corresponding to the measured temperature. The data is provided via I²C interface. The temperature range is -40°C to +125°C while the resolution is 0.01°C. The TSYS02D can be interfaced to any microcontroller by an I²C interface. The TDFN8 package provides smallest size and very fast time response.

• High Accuracy ±0.2°C @ Temp.: -5°C to +50°C
• I2C Interface up to 400kHz
• 16 bit Resolution
• High Speed, Low Power Consumption
• Small IC-Package TDFN8 2.5mm x 2.5mm
• Operating Temperature Range: -40°C to +125°C
