TSM4 YL 1M 10% TR E3

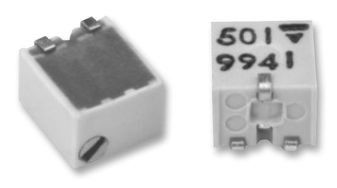

The TSM4 trimming potentiometer has been designed for surface mount applications and offers volumetric efficiency 5 mm x 5 mm x 3.7 mm with high performance and stability. The TSM4 design is suitable for both manual or automatic operation, and can withstand vapor phase and reflow soldering techniques.
- 0.25 W at 70 °C
- Professional and industrial grade
- Wide ohmic range (10 ? to 1 M?)
- Low contact resistance variation (2 % or 3 ?)
- Small size for optimum packaging density
- Tests according to CECC 41000 or IEC 60393-1
Характеристики
| Бренд | Vishay |
|---|---|
| Рабочая температура | -55 to 125 °C |
| Type Prod | Trimmer |
| Schedule B | 8533400080 |
| HTSN | 8533408070 |
| Страна происхождения | United States |
| Msl Level | 1 |
| Number Of Turns | 11(Elec)|13(Mech) Turns |
SKU: TSM4YL105KR05
