Transistor Output Optocouplers TRANSISTOR OUTPUT

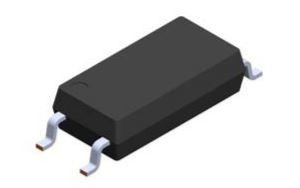

The FODM100x Series, single channel, DC sensing input, optocoupler consists of one gallium arsenide (GaAs) infrared light emitting diode optically coupled to one phototransistor, in a stretched body SOP 4-pin package. The input-output isolation voltage, VISO, is rated at 5,000 VACRMS.

• = 8 mm Creepage and Clearance Distance, and = 0.4 mm Insulation Distance to Achieve Reliable and High Voltage Insulation
• Safety and Regulatory Approvals
• UL1577, 5,000 VAC_RMS for 1 min
• DIN_EN/IEC60747-5-5, 890 V_Peak Working Voltage
• High Breakdown Collector to Emitter Voltage, BVCEO = 70 V minimum
• Extended Industrial Temperate Range, -40 to 110°C
• Current Transfer Ratio at IF = 5 mA, VCE = 5 V, TA = 25ºC
