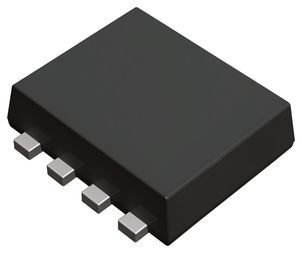

Transistor MOSFET Array Dual P-CH 20V 5A 8-Pin ECH T/R
ECH8654 is a P-Channel Power MOSFET, -20V, -5A, 38mO, Dual ECH8 for General-Purpose Switching Device Applications.
- Low ON-resistance
- 1.8V drive
- Halogen free compliance
- Protection diode in
Характеристики
| Бренд | ON Semiconductor |
|---|---|
| Typical R | 55 ns |
| Typical T | 14 ns |
| Maximum C | 5 A |
| Описание продукта | 2.9 x 2.3 x 0.93 mm mm |
| Maximum G | ±10 V |
| Max Proce | 260 °C |
| Rds On | 38@4.5V mOhm |
| Channel Type | Dual P |
| Supplier | ECH |
| Msl Level | MSL 1 - Unlimited |
| Typical T | 92 ns |
| Maximum D | 20 V |
| Рабочая температура | -55 to 150 °C |
| Channel Mode | Enhancement |
| Typical F | 68 ns |
| Maximum P | 1.5 W |
| Schedule B | 8541290080 |
| HTSN | 8541290095 |
| Страна происхождения | United States |
| Lead Finish | Tin-Bismuth |
SKU: ECH8654-TL-H
