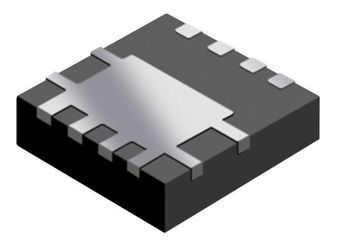

Transistor MOSFET Array Dual N-CH 40V 60A 8-Pin PowerFLAT T/R
This device is a dual N-channel Power MOSFET developed using STMicroelectronics’ STripFET F5 technology. The device has been optimized to achieve very low on-state resistance, contributing to a FOM that is among the best in class.
Designed for automotive applications and AEC-Q101 qualified Extremely low on-resistance RDS(on) Very low gate charge Low gate drive power loss Wettable flank package option
Характеристики
| Бренд | STMicroelectronics |
|---|---|
| Typical R | 45 ns |
| Описание продукта | 5 x 6 x 0.81 mm mm |
| Maximum G | ±20 V |
| Max Proce | 260 °C |
| Rds On | 9@10V mOhm |
| Channel Type | Dual N |
| Supplier | PowerFLAT |
| Msl Level | MSL 1 - Unlimited |
| Maximum D | 40 V |
| Рабочая температура | -55 to 175 °C |
| Channel Mode | Enhancement |
| Typical F | 5 ns |
| Maximum P | 60 W |
| Schedule B | 8541290080 |
| HTSN | 8541290075 |
| Страна происхождения | Китай |
| Screening Level | Automotive |
| Typical T | 32 ns |
| Typical T | 18 ns |
| Maximum C | 60 A |
SKU: STL15DN4F5
