Transistor MOSFET Array Dual N-CH 40V 12A 8-Pin Power 33 T/R

Transistor MOSFET Array Dual N-CH 40V 12A 8-Pin Power 33 T/R

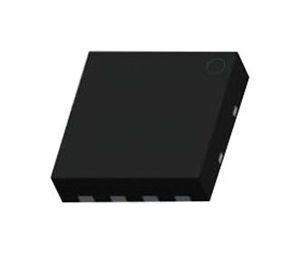

This device includes two 40V N-Channel MOSFETs in a dual Power 33 (3 mm X 3 mm MLP) package. The package is enhanced for exceptional thermal performance.
  • Max r DS(on) = 10 m O at V GS = 10 V, I D = 12 A
  • Max r DS(on) = 14 m O at V GS = 4.5 V, I D = 10 A
  • Max r DS(on) = 28 m O at V GS = 3.2 V, I D = 4 A
  • Termination is Lead-free and RoHS Compliant

Характеристики

Бренд ON Semiconductor
Typical R 3 ns
Описание продукта 3 x 3 x 0.75 mm
Maximum G ±12 V
Max Proce 260 °C
Rds On 10@10V mOhm
Channel Type Dual N
Supplier Power 33
Msl Level MSL 1 - Unlimited
Maximum D 40 V
Рабочая температура -55 to 150 °C
Channel Mode Enhancement
Typical F 3 ns
Maximum P 14 W
Schedule B 8541290080
HTSN 8541290095
Страна происхождения Thailand
Typical T 19 ns
Typical T 7 ns
Maximum C 12 A
SKU: FDMC8030 Поставщик: по запросу
