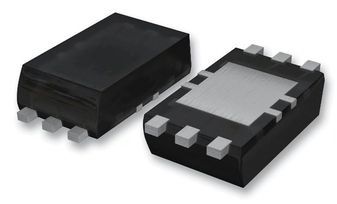

Trans MOSFET N-CH 30V 3A 6-Pin WSOF T/R
The µPA622TT is a switching device which can be driven directly by a 4.0 V power source.This device features a low on-state resistance and excellent switching characteristics, and is suitable for applications such as power switch of portable machine and so on.
- 4.0 V drive available
- Low on-state resistance
- RDS(on)1 = 82 m? MAX. (VGS = 10 V, ID = 1.5 A)
- RDS(on)2 = 120 m? MAX. (VGS = 4.5 V, ID = 1.0 A)
- RDS(on)3 = 139 m? MAX. (VGS = 4.0 V, ID = 1.0 A)
Характеристики
| Бренд | Renesas Electronics |
|---|---|
| Описание продукта | 2 x 1.6 x 0.75 mm |
| Рабочая температура | -55 to 150 °C |
| Max Proce | 260 |
| Schedule B | 8541210080 |
| HTSN | 8541210095 |
| Страна происхождения | United States |
| Channel Type | N |
| Supplier | WSOF |
| Channel Mode | Enhancement |
| Maximum C | 3 A |
| Maximum D | 30 V |
| Maximum G | ±20 V |
| Typical T | 10 ns |
| Typical T | 75 ns |
| Rds On | 82@10V mOhm |
| Typical F | 50 ns |
| Typical R | 28 ns |
SKU: UPA622TT-E1-A
