Trans GP BJT PNP 65V 0.1A 3-Pin SC-70 T/R

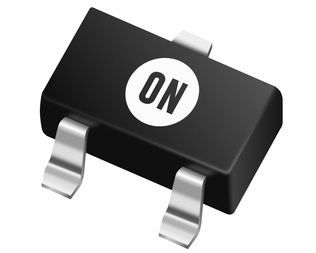

The NPN Bipolar Transistor is designed for general purpose amplifier applications. It is housed in the SOT-323/SC-70 package, which is designed for low power surface mount applications.
- Collector-Emitter Breakdown Voltage -65 V
- Pb-Free Devices are available
Характеристики
| Бренд | ON Semiconductor |
|---|---|
| Minimum D | 220@2mA@5V |
| Maximum D | 0.1 A |
| Maximum P | 150 mW |
| Описание продукта | 2.1 x 1.24 x 0.85 mm |
| Maximum C | 80 V |
| Maximum E | 5 V |
| Maximum C | 0.65@5mA@100mA V |
| Maximum C | 65 V |
| Рабочая температура | -55 to 150 °C |
| Lead Finish | Matte Tin |
| Max Proce | 260 |
| Type Prod | PNP |
| Supplier | SC-70 |
| Schedule B | 8541210080 |
| HTSN | 8541210095 |
| Страна происхождения | Китай |
| Msl Level | 1 |
| Maximum B | 0.9@5mA@100mA V |
| Channel Type | P |
SKU: BC856BWT1G
