Tower System

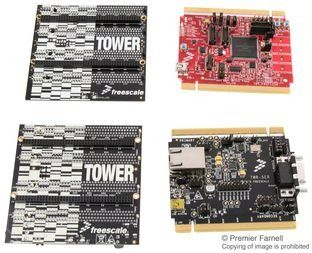

The TWR-K60F120M is a development board for the Kinetis K10, K20 and K60 120/150MHz 32-bit ARM Cortex-M4 MCUs. It features the Kinetis MK60FN1M0VMD12 low-power MCU with USB 2.0 HS OTG controller, USB 2.0 FS OTG controller and 10/100 Mbps Ethernet MAC. The TWR-K60F120M operates as a standalone debug tool and can also be combined and used as part of the modular Tower System development platform.

• MK60FN1M0VLQ12: K60FN1M in a 144 LQFP with 120 MHz operation
• S08JM60 based open-source BDM (OSBDM) circuit
• NAND flash
• 4 user-controlled status LEDs
• 4 Capacitive Touch Pads and 2 mechanical push buttons
• Socket for Capacitive Touch Pad daughter board (Touch TWRPI)
• Socket for Tower Plugin (TWRPI, e.g. sensor board)
• Potentiometer
• Three-axis digital accelerometer (MMA8451Q)
• SD Card slot
