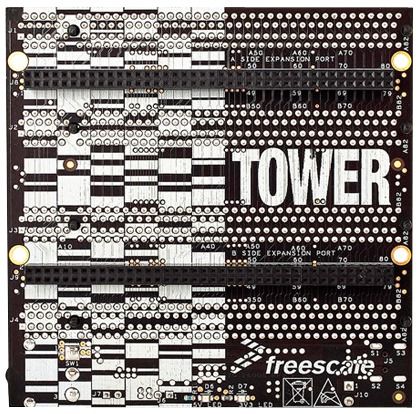

Tower System Elevator Module for Tower System

The TWR-ELEV Elevator modules are the basic building block of the Freescale Tower System. Designed to connect MCU and peripheral modules, the Elevator modules provide the power regulation circuitry and structural integrity needed for all configurations of an assembled Tower System. Functional elevator board provides power regulation circuitry and power inputs from a standard USB mini-B connector or a screw terminal.

Four 164-pin card-edge connectors carrying standardized serial and expansion bus signals

Two 2 x 80 connectors on backside for easy signal access and side-mounting board (e.g. TWR-LCD)
