Thermistor NTC 47000Ohm ±5% 2-Pin

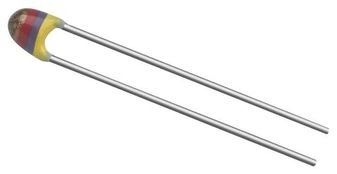

These thermistors have a negative temperature coefficient. The device consists of a chip with two solid copper tin plated leads. It is grey lacquered and color coded, but not insulated.
- Accuracy over a wide temperature range
- High stability over a long life
- Excellent price/performance ratio
- UL recognized
Характеристики
| Бренд | Vishay |
|---|---|
| Thermal T | 15 s |
| Описание продукта | 3.3(Max) x 3(Max) x 9(Max) mm |
| Screening Level | Extended Industrial |
| Maximum P | 0.5 W |
| Type Prod | NTC |
| Рабочая температура | -40 to 125 °C |
| Max Proce | 265 °C |
| Descripti | 0.6mm dia. x 15mm Straight Lead |
| Resistanc | 47000 Ohm |
| Percentag | ±5 % |
| Sensitivi | 4090 K |
| Schedule B | 8533400080 |
| HTSN | 8533408070 |
| Lead Finish | Tin |
| Accuracy | 1.5 % |
SKU: NTCLE100E3473JB0A
