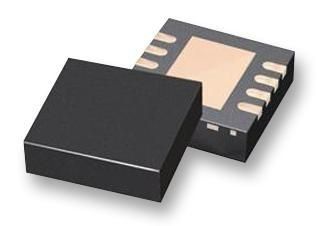

Temp Sensor Digital Serial (2-Wire, I2C) 8-Pin HVSON EP T/R
SE98 is a DDR memory module temp sensor which measures temperature from -40 °C to +125 °C communicating via the I2C-bus/SMBus. The SE98 supports the industry-standard 2-wire I2C-bus/SMBus serial interface. The SMBus TIMEOUT function is supported to prevent system lock-ups. Manufacturer and Device ID registers provide the ability to confirm the identify of the device. Three address pins allow up to eight devices to be controlled on a single bus. To maintain interchangeability with the I2C-bus/SMBus interface the electrical specifications are specified with the operating voltage of 3.0 V to 3.6 V.
- JEDEC (JC-42.4) SO-DIMM temperature sensor
- Optimized for voltage range: 3.0 V to 3.6 V
- Shutdown/Standby current: 8 µA (typ.) and 15 µA (max.)
- 2-wire interface: I2C-bus/SMBus compatible, 0 Hz to 400 kHz
- SMBus ALERT and TIMEOUT (programmable)
- Available packages: TSSOP8 and HVSON8
- Temperature-to-Digital converter
- Operating current: 200 µA (typ.) and 250 µA (max.)
- Programmable hysteresis threshold: 0 °C, 1.5 °C, 3 °C, 6 °C
Характеристики
| Бренд | NXP |
|---|---|
| Рабочая температура | -20 to 125 °C |
| Описание продукта | 3.1 x 3.1 x 0.95 mm |
| Supplier | HVSON EP |
| Lead Finish | Gold |
| Output Type | Digital |
| Function | Temp Sensor |
| Max Proce | 260 |
| Msl Level | 1 |
| Schedule B | 8541500080 |
| HTSN | 8541500080 |
| Operating | 3 to 3.6 V |
| Accuracy | 4(Max) °C |
| Accuracy | ?4(Max) |
| Interface Type | Serial (2-Wire, I2C) |
| Temperatu | 6 °C |
SKU: SE98TK,118
