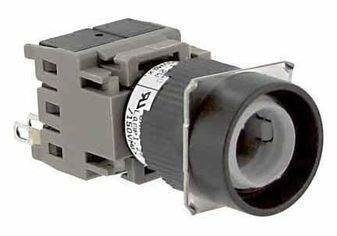

Switch Push Button N.O./N.C. DPST Round Button 5A 250VAC 24VDC 0.4VA Solder Lug Panel Mount
Switch Push Button N.O./N.C. DPST Round Button 5A 250VAC 24VDC 0.4VA Solder Lug Panel Mount
Характеристики
| Бренд | TE Connectivity |
|---|---|
| Рабочая температура | -20 to 50 °C |
| Описание продукта | 17.98 x 17.98 x 53.14 mm |
| Schedule B | 8536509065 |
| HTSN | 8536509065 |
| Страна происхождения | United States |
| Maximum D | 24 V |
| Pole Thro | DPST |
| Terminal Type | Solder Lug |
| Actuator Style | Round Button |
| Maximum C | 5@250VAC 24VDC mA |
| Function | Momentary Contact |
| Switch Co | N.O./N.C. |
| Contact Plating | Gold/Silver Clad |
| Contact M | Copper Alloy |
| Maximum P | 0.4@20VAC 20VDC VA |
| Illuminat | Lamp |
| Maximum A | 250 V |
SKU: 164EL511
