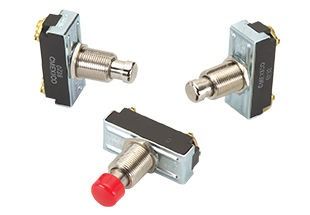

Switch Push Button N.O. SP Plunger 15A 250VAC Momentary Contact Screw Panel Mount
The 172-Series pushbutton switches are single pole, high amperage switches suitable for shallow back panel applications. These switches are momentary action and require an actuation force of 2.5 lbs. The 172-Series switches are equipped with a slow-make, slow-break contact mechanism and are rated at 15 amps at 125VAC.
- Rated to 15A 125VAC
- Sturdy metal clad construction
- Metal plunger available with optional colored plastic cap
- Momentary On or Momentary Off circuitry
Характеристики
| Бренд | Carling Technologies |
|---|---|
| Рабочая температура | 0 to 85 °C |
| Описание продукта | 35.1 x 14.63 x 41.29 mm |
| Schedule B | 8536509065 |
| HTSN | 8536509065 |
| Страна происхождения | Mexico |
| Mechanical Life | 100000 Cycles |
| Pole Thro | SP |
| Maximum C | 15@125VAC mA |
| Function | Momentary Contact |
| Switch Co | N.O. |
| Maximum A | 250 V |
SKU: 172-CRD
