STM32H747 32-bit Microcontroller Discovery Kit

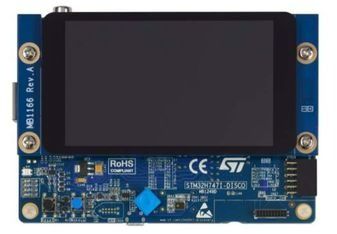

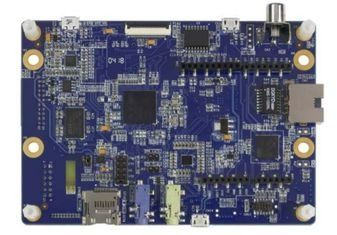

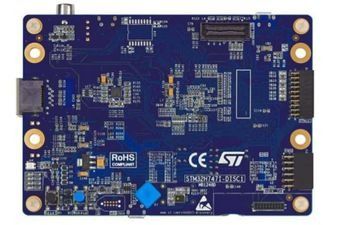

The STM32H747I-DISCO Discovery kit is a complete demonstration and development platform for STMicroelectronics STM32H747XIH6 microcontroller, designed to simplify user application development.STM32H747I-DISC1 is the subset of STM32H747I-DISCO without the LCD display module.The full range of hardware features available on the boards helps users improve application development by an evaluation of all the peripherals (USB OTG HS, Ethernet, microSD card, SAI Audio DAC stereo with audio jack input and output, MEMS digital microphone, SDRAM, Quad-SPI Flash, DCMI connector, MIPI DSI interface, and others). Arduino Uno V3 and Pmod/STMod+ connectors provide easy connection to extension shields or daughterboards for specific applications.

• STM32H747XIH6 Arm-based microcontroller with 2 Mbytes of Flash memory and 1 Mbyte of RAM in TFBGA240 + 25 package
• 4” capacitive touch LCD display module with MIPI DSI interface (STM32H747I-DISCO order code only)
• Ethernet compliant with IEEE802.3-2002
• USB OTG HS
• SAI audio codec
• ST-MEMS digital microphones
• 2 x 512-Mbit Quad-SPI NOR Flash memory
• 256-Mbit SDRAM
• 4 color user LEDs
• 1 user and reset push-button
• 4-direction joystick with selection button
• Fanout daughterboard
• Board connectors:
  • Camera (8-bit)
  • USB with Micro-AB
  • Ethernet RJ45
  • SPDIF RCA input and output
  • Stereo headset jack including analog microphone input
  • Audio jack for external speakers
  • microSD card
  • TAG-Connect 10-pin footprint
  • Arm Cortex 10-pin 1.27 mm-pitch debug connector over STDC14 footprint
• Board expansion connectors:
  • Arduino Uno V3
  • Pmod Type 2A and Type 4A
  • STMod+
  • Audio daughterboard
• Flexible power-supply options:
  • ST-LINK USB VBUS, USB OTG HS connector, or external sources
• On-board STLINK-V3E debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port and debug port
• Comprehensive free software libraries and examples available with the STM32Cube MCU Package
• Support of a wide choice of integrated development environments (IDEs), including IAR, Keil and GCC-based IDEs
