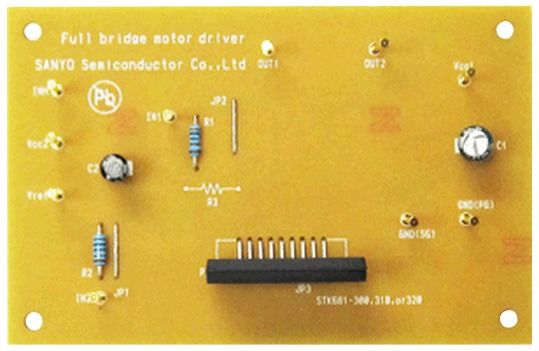

STK681-360-E Forward/Reverse Motor Driver Evaluation Board

STK681-360-E is a forward/reverse motor driver thick film hybrid IC. It is designed for current control of DC brush motors. It allows forward, reverse, and brake operations in accordance with the external input signal. The peak startup output current is 5.8A and the peak brake output current is 8A. It have current sensing resistor(0.05O) built-in, and we can space-saving design easily. And it obviate the need to design for the dead time in order to turn off the upper and lower drive devices when switching between the forward and reverse operation mode.

• Built-in current sensing resistor
• Built-in over-heat protection
• Built-in over-current protection
• turn off the upper and lower drive devices when switching between the forward and reverse operation mode
