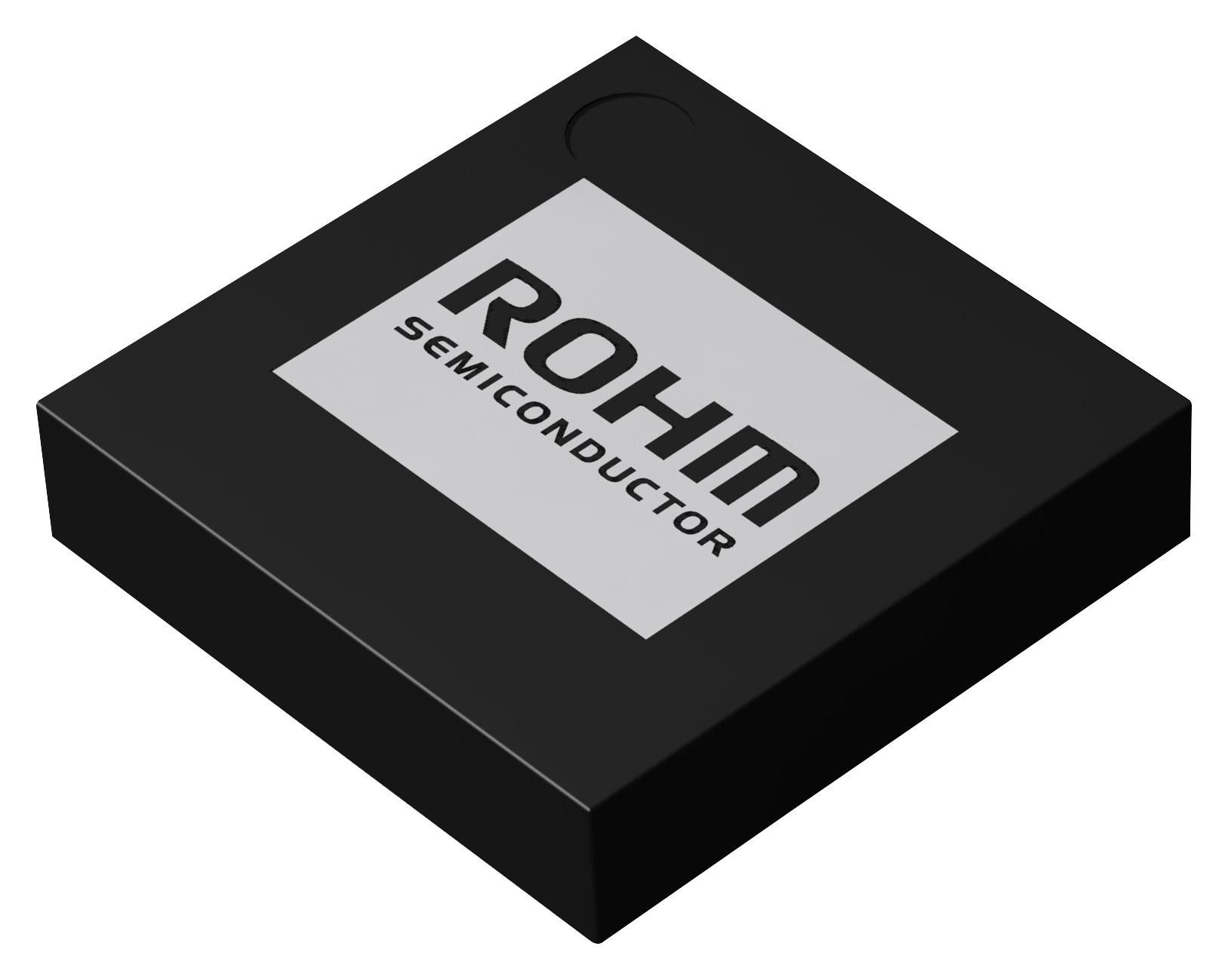

Stepping Motor Driver 34-Pin UCSP75M2 T/R
In addition to auto focus, stepping motors can be used for zoom, aperture, and the lens cover. Constant current drivers for shutter include the simple Full On type, high accuracy linear type, and high efficiency PWM type. Select the ideal solution based on your needs.
·6-channels H-Bridge driver for Full-On Drive (ON resistance=1.2O Typ.)
·UVLO (Under Voltage Lockout Protection)
·Built-in TSD (Thermal Shut Down) circuit
·Standby current consumption 0µA Typ.
·Subminiature 34PIN Wafer-level CSP (Chip Size Package) : 2.6mm×2.6mm×0.85mm Max.
·UVLO (Under Voltage Lockout Protection)
·Built-in TSD (Thermal Shut Down) circuit
·Standby current consumption 0µA Typ.
·Subminiature 34PIN Wafer-level CSP (Chip Size Package) : 2.6mm×2.6mm×0.85mm Max.
Характеристики
| Бренд | ROHM |
|---|---|
| Type Prod | Stepper Motor Driver |
| Schedule B | 8542310000 |
| Рабочая температура | -25 to 85 °C |
| Описание продукта | 2.6 x 2.6 x 0.63 mm |
| Maximum O | 1.9 mA |
| Supplier | UCSP75M2 |
| HTSN | 8542310001 |
SKU: BD6373GW-E2
