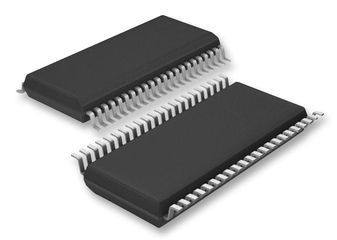

Stepper Motor Driver 44-Pin SSOP44K
The LV8746V is a stepper motor driver corresponding to the Quarter-step excitation drive that the selection of CLK-IN input and a parallel input is possible. It is ideally suited for driving stepper motors used in office equipment and amusement applications.
- Low on resistance (upper side : 0.84O ; lower side : 0.7O ; total of upper and lower : 1.54O ; Ta = 25°C, IO = 1A)
- Excitation mode can be set to Full-step, Half-step Full torque, Half-step, or Quarter-step
- Motor current selectable in four steps
- Output short-circuit protection circuit (selectable from latch-type or auto-reset-type) incorporated
- CLK-IN input and a parallel input can be selected
- PWM current control stepper motor driver incorporated.
- BiCDMOS process IC
- CLK-IN input and a parallel input can be selected.
- Unusual condition warning output pins
- No control power supply required
Характеристики
| Бренд | ON Semiconductor |
|---|---|
| Type Prod | Stepper Motor Driver |
| Schedule B | 8542390000 |
| Страна происхождения | United States |
| Рабочая температура | -20 to 85 °C |
| Описание продукта | 15 x 5.6 x 1.5 mm |
| Msl Level | 3 |
| Supplier | SSOP44K |
| HTSN | 8542390001 |
SKU: LV8746V-MPB-E
