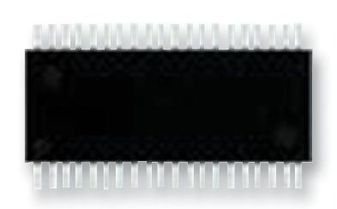

Stepper Motor Driver 24V 40-Pin HTSSOP-B T/R

This series is the high-grade type that provides the highest function and highest reliance in the ROHM stepping motor driver series. This series has the perfect various protection circuits and reduces IC"s generation of heat by adopting low-ON resistance DMOS and high heat-radiation power package. As for its basic function, it is a low power consumption bipolar PWM constant current-drive driver with power supply"s rated voltage of 36V and rated output current of 1.0A to 2.2A. There are input interface types of CLK-IN drive / PARALLEL-IN compatible, CLK-IN drive, PARALLEL-IN drive (3 kinds), so please choose an input mode according to needs of application. ·Low on-resistance DMOS, rated output current 2.0A
·CLK-IN/PARALLEL-IN drive
·QUARTER STEP
·Applicable to the µSTEP drive
·Power-saving function
·Forward rotation & reverse rotation switching function
·TSD(Thermal Shutdown) circuit
·OCP(Over Current Protection) circuit
·UVLO(Under Voltage Locked Out) circuit
·OVLO(Under Voltage Locked Out) circuit
·Power ON reset function
·Compact, thin-shape, and high heat dissipation package
·Current decay mode selection(Mix decay)
·One power supply system 36V
·pin-compatible line up(BD6387EFV/BD6385EFV/BD6383EFV)
