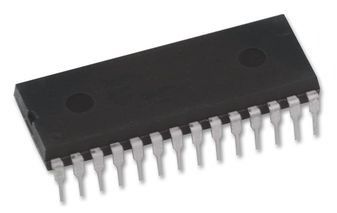

Stepper Motor Controller 28-Pin PDIP H

A stepping motor driver IC that implements PWM current control bipolar drive with a fixed off time.This IC features 15-current setting levels using a fixed VREF voltage and supports for micro-stepping drive from 1-2 phase excitation to 4W1-2 phase excitation drive.This device is optimal for driving stepping motors such as those used for carriage drive and paper feed in printers.

• PWM current control with a fixed off time
• Logic input serial-parallel converter (allows 1-2, W1-2, 2W1-2 and 4W1-2 phase excitation drive)
• Built-in upper and lower side output diode
• Current attenuation switching function (with slow decay, fast decay and mixed decay modes)
• Simultaneous on state prevention function (through current prevention)
• Noise canceller function
• Thermal shutdown circuit
• Shutoff on low logic system voltage circuit
• Low-power mode control pin
