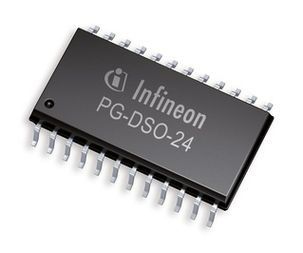

Stepper Motor Controller 24-Pin DSO

TLE4726G is a bipolar, monolithic IC for driving bipolar stepper motors, DC motors and other inductive loads that operate on constant current. The control logic and power output stages for two bipolar windings are integrated on a single chip which permits switched current control of motors with 0.75 A per phase at operating voltages up to 50 V.

• 2× 0.75 A / 50 V outputs
• Integrated driver, control logic and current control (chopper)
• Fast free-wheeling diodes
• Low standby-current drain
• Full, half, quarter, mini step
