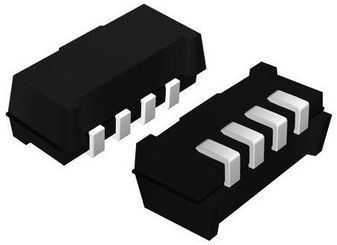

SMD IR RECEIVER 33KHZ SIDE VIEW

The TSOP75333 series is a two lens miniaturized receiver module for infrared remote control systems. One PIN diode per lens and a preamplifier are assembled on a leadframe, the epoxy lens cap is designed as an IR filter. The demodulated output signal can be directly decoded by a microprocessor. The TSOP75333 is compatible with all common IR remote control data formats. It is optimized to suppress almost all spurious pulses from energy saving fluorescent lamps including dimmed LCD backlightings. This component has not been qualified according to automotive specifications.

• Very low supply current
• Photo detector and preamplifier in one package
• Compatible also with short burst dataformats
• Supply voltage: 2.5 V to 5.5 V
• Improved immunity against ambient light
• Capable of side or top view
• Two lenses for high sensitivity and wide receiving angle
• Insensitive to supply voltage ripple and noise
• Narrow optical filter to reduce interference from plasma TV emissions
• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
