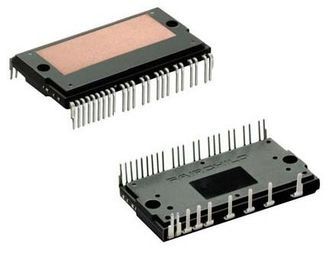

Smart Power Module 32-Pin SPM32-CA Rail

The FSAM50SM60A is a Motion SPM 2 series that Fairchild has developed to provide a very compact and low cost, yet high performance inverter solution for AC motor drives in low-power applications such as air conditioners. It combines optimized circuit protections and drive matched to low-loss IGBTs. Effective over-current protection is realized through advanced current sensing IGBTs. The system reliability is further enhanced by the built-in thermostat and integrated under-voltage lock-out protection. In addition the incorporated HVIC facilitates the use of single-supply voltage without any negative bias. Inverter leg current sensing can be implemented because of three separate negative DC terminals.

• UL Certified No. E209204
• 600V-50A 3-phase IGBT inverter bridge including control ICs for gate driving and protection
• Three separate negative dc-link terminals for inverter current sensing applications
• Single-grounded power supply thanks to built-in HVIC
• Typical switching frequency of 5kHz
• Built-in thermistor for temperature monitoring
• Inverter power rating of 4.0kW / 100~253 VAC
• Isolation rating of 2500Vrms/min.
• Very low thermal resistance by using DBC(Al2O3) substrate
• Adjustable current protection level by changing the value of series resistor connected to the emitters of sense-IGBTs
