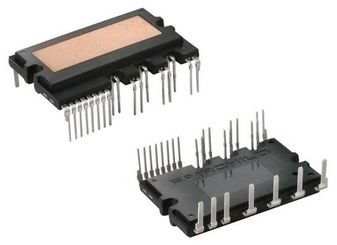

Smart Power Module 27-Pin SPM27-CC

The FSBB15CH60C is an advanced Motion providing a fully-featured, high-performance inverter out- put Stage for AC Induction, BLOC, and PMSM Motors. These mixtures integrate optimized gate drive Of the built-in IGBTs to minimize EMI and losses, While also providing multiple on-module protection features include- ing under-voltage lockouts, over-current shutdown, and fault reporting. The built-in, high-speed HVIC requires only a single supply voltage and translates the incoming logic-level gate inputs to the high-voltage, high-current drive signals required to property drive the module"s internal IGBTS. Separate negative IGBT terminals are available for each phase to support the widest variety Of control algorithms.

• UL certified No. &209204 (UL1557)
• 600 V - 15 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection
• LOW-LOSS, Short-Circuit Rated IGBTS
• Very LOW Thermal Resistance using A1203 DBC
• Built-in Bootstrap Diodes and Dedicated Vs Pins Simplify PCB Layout
• Separate Open-Emitter Pins from IGBTS for Three-phase Current Sensing
• Single-Grounded Power Supply
• Isolation Rating: 2500 Vrms/ min.
