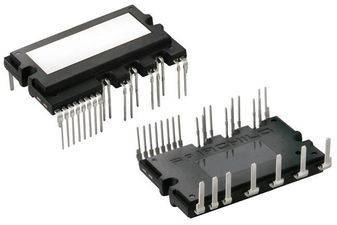

Smart Power Module 27-Pin SPM27-BA Rail

The FSBS15CH60 is a Motion SPM 3 module providing a fully-featured, high-performance inverter output stage for AC Induction, BLDC, and PMSM motors. These modules integrate optimized gate drive of the built-in IGBTs to minimize EMI and losses, while also providing multiple on-module protection features including under-voltage lockouts, over-current shutdown, and fault reporting. The built-in, high-speed HVIC requires only a single supply voltage and translates the incoming logic-level gate inputs to the high-voltage, high-current drive signals required to properly drive the module"s internal IGBTs. Separate negative IGBT terminals are available for each phase to support the widest variety of control algorithms.

• UL Certified No. E209204 (UL1557)
• 600 V - 15 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection
• Low-Loss, Short-Circuit Rated IGBTs
• Low Thermal Resistance Using Ceramic Substrate
• Dedicated Vs Pins Simplify PCB Layout
• Separate Open-Emitter Pins from Low-Side IGBTs for Three-Phase Current Sensing
• Single-Grounded Power Supply
• Isolation Rating: 2500 Vrms / min.
