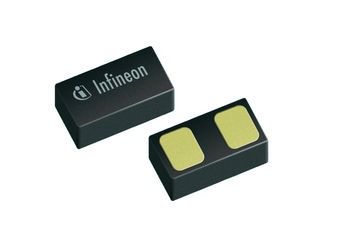

Single Bi-Dir 5.3V 2-Pin TSSLP T/R
Bi-directional low Capacitance ESD / Transient Protection Diode
- ESD / transient protection of RF signal lines according to:
- IEC61000-4-2 (ESD): ±20 kV (air/contact)
- IEC61000-4-4 (EFT): 40 A (5/50 ns)
- IEC61000-4-5 (surge): 3 A (8/20 µs)
- Maximum working voltage: VRWM ±5.3 V
- Extremely low capacitance: CL = 0.2 pF (typical)
- Low clamping voltage: VCL = 29 V at IPP = 16 A (typical)
- Very low reverse current IR < 1 nA typ.
- Very small form factor down to 0.62 x 0.32 x 0.31 mm3
- Pb-free (RoHS compliant) and halogen free package
Характеристики
| Бренд | Infineon |
|---|---|
| Lead Finish | Gold |
| Описание продукта | 0.62 x 0.32 x 0.26(Max) |
| Maximum C | 21 V |
| Schedule B | 8541100080 |
| HTSN | 8541100080 |
| Страна происхождения | Malaysia |
| Direction Type | Bi-Directional |
| Supplier | TSSLP |
| Msl Level | 1 |
| Configuration | Single |
| Рабочая температура | -55 to 125 °C |
| Maximum R | 5.3 V |
| Maximum R | 0.05 uA |
| Test Current | 1 mA |
| Minimum B | 7 V |
| Esd Protection | Да |
| Maximum P | 3 A |
SKU: ESD112B102ELSE6327XTSA1
