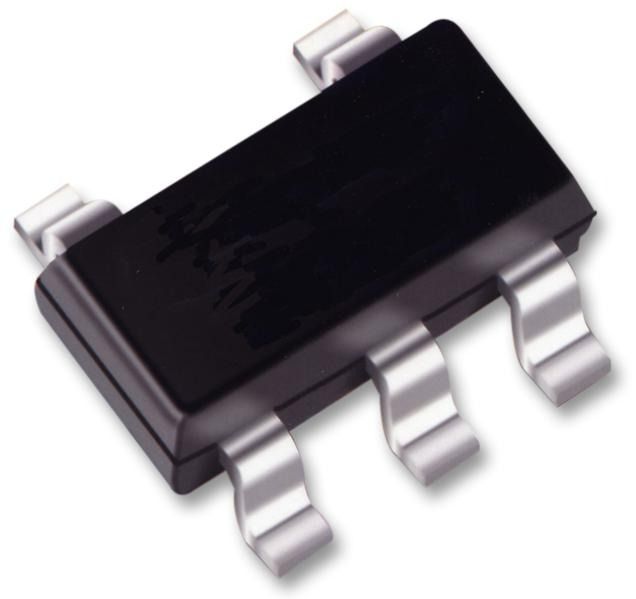

Schmitt Trigger Buffer 1-CH Non-Inverting 5-Pin SC-88A T/R
The NL17SZ17 is a single Buffer,with Schmitt operating from 1.65-5.5 V, available in either the very popular SC70/SC88A/SOT-353 package or the tiny 1.6 X 1.6 X .6 mm SOT553 package.
- Tiny SC70-5/SC-88A Package
- Source/Sink 24 mA at 3.0 Volts
- Over-Voltage Tolerant Inputs and Outputs
- Chip Complexity: FETs = 20
- Designed for 1.65 V to 5.5 V VCC
- Pb-Free Packages are Available
Характеристики
| Бренд | ON Semiconductor |
|---|---|
| Msl Level | 1 |
| Max Proce | 260 |
| Logic Function | Schmitt Trigger Buffer |
| Typical O | 1.8|2.5|3.3|5 V |
| Рабочая температура | -55 to 125 °C |
| Minimum O | 1.65 V |
| Screening Level | Automotive |
| Propagati | 50 pF |
| Lead Finish | Matte Tin |
| Maximum L | 32 mA |
| Maximum O | 5.5 V |
| Supplier | SC-88A |
| Number Of | 1 |
| Polarity | Non-Inverting |
| Bus Hold | Нет |
| Описание продукта | 2.2(Max) x 1.35(Max) x 1(Max) |
| Number Of | 1 |
| Number Of | 1 |
| Number Of | 1 |
| Input Sig | Single-Ended |
| Maximum P | 7.2@3.3V|5.9@5V ns |
| Schedule B | 8542310000 |
| HTSN | 8542310001 |
| Страна происхождения | Китай |
| Maximum Q | 1 uA |
| Maximum H | -32 mA |
SKU: NLV17SZ17DFT2G
