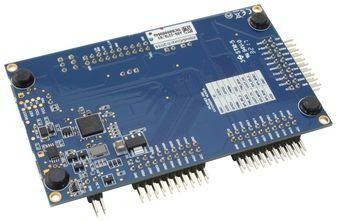

SAM DA1 Family Microcontroller Xplained Pro Evaluation Kit

The SAM DA1 Xplained Pro evaluation kit is ideal for evaluating and prototyping with the SAM DA1 ARM Cortex -M0+ based microcontrollers. Extension boards to the SAM DA1 Xplained Pro can be purchased individually. The ATSAMDA1-XPRO evaluation kit does not include extension boards. The SAM DA1 Xplained Pro supports the I/O1 Xplained Pro, OLED1 Xplained Pro, QT1 and QT4 Xplained Pro and PROTO1 Xplained Pro extension boards.

• SAMDA1J16A automotive grade microcontroller
• On-board integrated LIN Transceiver (ATA663231) with built-in 3.3V VREG
• One mechanical reset button
• One mechanical user pushbutton — Wake-up, boot loader entry or general purpose
• One yellow user LED
• 32.768kHz crystal
• USB interface, device and reduced host mode
• 3 Xplained Pro extension headers
• 1 High Voltage extension header (LIN functionality)
• Embedded Debugger — Auto-ID for board identification in Studio. One yellow status LED. One green board power LED. Symbolic debug of complex data types including scope information. Programming and debugging. Data Gateway Interface: SPI, I²C, 4 GPIOs. Virtual COM port (CDC)
• USB or LIN bus powered
• Supported with application examples in Software Framework
